OilSmart Pump Switch and OilSmart Alarm Systems
High Liquid Level Alarms and Pump Controls
PUMP WATER — NEVER OIL
OilSmart systems automatically pump only water — never oil — ensuring safe, reliable operation and peace of mind with every cycle.
- Made in USA
- Proven since 1990
- All Technologies
Pump Switch and Alarm Systems
For elevator sumps, underground utility vaults, tank farms, secondary containment areas, & pits.
Pumps water only, will not pump hydrocarbons!
One of the biggest challenges in pumping water from oil containment areas, elevator sumps and underground utility vaults is how to pump water into waterways while containing the oil. OilSmart Systems incorporate pump controls and alarm sensors that differentiate between oil and water, allowing companies to responsibly discharge the water without worrying about contamination.
Every once in awhile a product comes along that does what nothing else does, or does it better than anything before it. This is it! The OilSmart pump controls and alarm sensors lets you safely pump water only!
Got Elevator Code Problems? OilSmart Systems Are The Solution!
Our OilSmart Systems incorporates pump controls and alarm sensors that differentiate between oil and water, allowing companies to responsibly discharge the water without worrying about contamination. OilSmart Systems are UL/CUL listed with a diverse range of electronic design capabilities.
OilSmart Pump Switch and Controller
OilSmart High Liquid Level Alarm
OilSmart Hard Wired High Liquid Level Alarm
OilSmart Alarm Model #S/OSA-06/X
This product is housed in an outdoor rated NEMA 4X enclosure. The system features a clear front with visible mounted oil and water indicators, alarm test and silence buttons. In addition to these features the swing panel allows for easy wiring of the LiquidSmart Sensor and incoming AC power. The S/OSA-06/X is an OilSmart Alarm designed for outdoor applications.
Oil Water Separator Oil Level Alerting System
SkimOIL ® ’s oil water separator (OWS) oil level sensor and alarm system was originally designed to provide an alarm signal when accumulated oil would reach a predetermined level. That signal / alarm could then be used to activate pump out systems (by others) or to alert operators that the oil water separator(OWS) needs attention or maintenance — and/or provide signal voltage for other controls — because the oil has reached that preset level.
OilSmart Single Phase Simplex Panels
OilSmart Single Phase Simplex Panel Model # S/OSSIM-30/X The OilSmart Simplex Panel, when combined with a manual sump pump, will automatically pump water without the risk of pumping oil into the environment. Additionally, the system alerts maintenance or building personnel in the event of a high oil or high water condition. Installation of the Simplex Panel allows you to comply with Elevator Code ASME A17.1 and State/Federal regulations while reducing the risk of adverse publicity, fines and expensive cleanup costs.

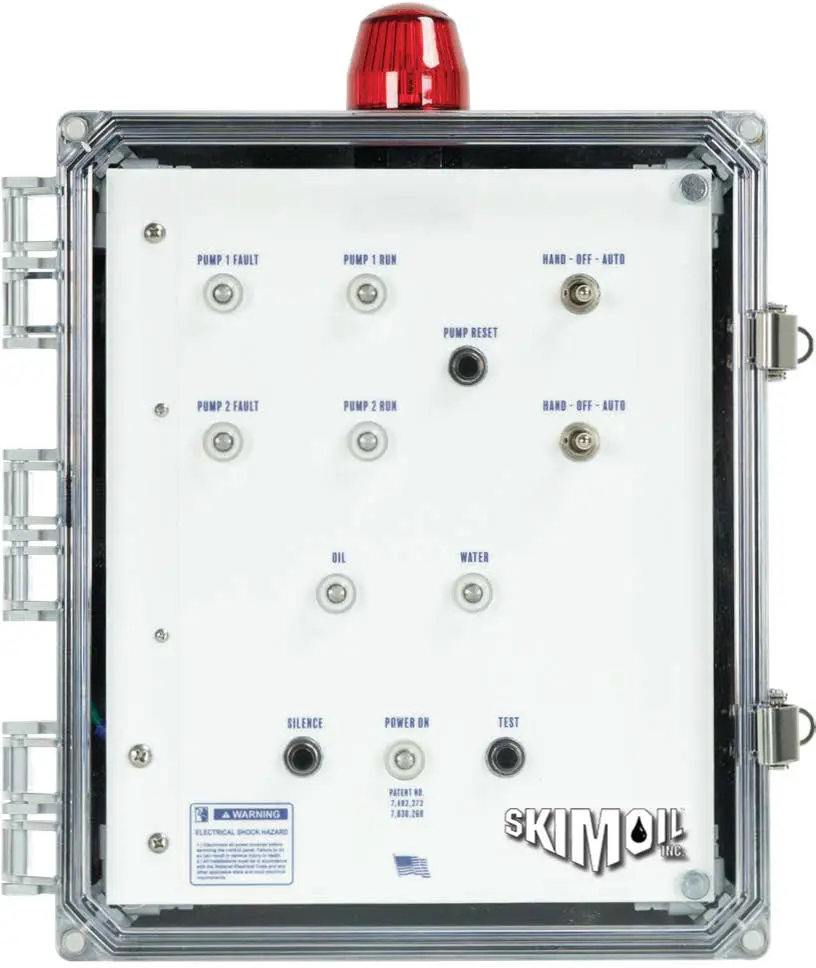

OilSMART Single Phase Duplex Panels
The OilSMART Duplex Panel, when combined with two manual sump pumps, will automatically pump water without the risk of pumping oil into the environment. The panel provides pump alteration and high demand two pump operation. Additionally, the duplex system alerts maintenance or building personnel in the event of a high oil or high water condition. The control panel comes complete with all required controls and panel monitoring capabilities. Installation of Duplex allows you to comply with State and Federal regulations while reducing the risk of adverse publicity, fines and expensive cleanup costs.
Submersible Sump Pump
Submersible Effluent Pump, Manual Operation Type, 4/10 HP, None, Base Material Cast Iron, Housing Cast Iron, Top Material Cast Iron, Carbon/Ceramic, Impeller Material Polypropylene, 115V, 8.5 Amps, Height 12-1/8 In., 10-3/32 In. Diameter, Cord Length 20 ft., Discharge NPT 1-1/2 In., Shaft Seal Carbon/Ceramic, Max. Dia. Solids 3/4 In., GPM of Water @ 10 Ft. of Head 61, Max. Head 38 ft., Max. Temp. 130 Degrees F, 1 Phase, Bearing Type Lower Ball, Upper Sleeve

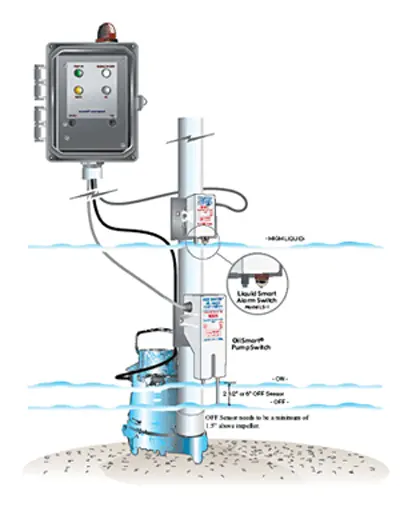

Complete OilSmart System: OilSmart Switch, OilSmart Pump and OilSmart alarm
- Directly controls sump pumps 0 to 1 hp(piggyback): quick installation
- Available in 120 VAC, 230 VAC 50/60 Hz., or 12/24 VDC
- No expensive electrical panel required (but SIMPLEX panel available)
- Sensors differentiate between oil and water
- Differential between on and off comes in 2.5″or 6″ models
- Available with or without a piggyback plug
- Helps satisfy elevator code ASME A17.1 and EPA, The Spill Prevention, Control, and Countermeasure Plan and testing made SO EASY
See also our Oil Water Separator High Oil Level Alert System
