Oil Spill Containment Boom Accessories and Hardware
Oil Boom WaterRiser / Tide Riser System (WRS)
- Tracks water level changes: Lets containment boom ride rising and lowering water along a vertical flange-beam
- Fast install out of the box: Ships completely assembled with simple slip-on or bolt-on setup
- Simple beam attachment: Slip over an open beam top or remove four bolts to reassemble on a closed beam
- Broad boom compatibility: Ready to connect to booms up to 6″ flotation x 12″ skirt with a Quick Latch coupler
- Durable couplers: Aluminum 6061T options available in ASTM/Universal Slide or Quick Latch/Z
- Customizable hardware: Custom lengths and hole configurations available
- Rugged hose floats: Urethane “sandwich” shell with closed-cell foam resists damage and keeps floating
- Tool-light installation: Quick Snap stainless clamp secures float halves—only a screwdriver needed
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Got changing water levels or lines that need flotation? We keep risers, couplers, and hose floats ready so you can deploy now—no waiting around. Just ask.
Oil Spill Containment Boom Accessories and Hardware Features
01
Design
- Water-riding mechanism: Guides boom up and down a vertical 4″ x 4″ flange-beam
- Assembled delivery: Units ship fully assembled for immediate installation
- Hose float construction: Urethane outer shell with closed-cell foam core maintains buoyancy even when damaged
02
INSTALLATION
- Beam mounting: Slip over open beam tops or unbolt and reassemble around closed beams
- Quick hose float fit: Half sections clamp with Quick Snap stainless gear clamp using only a screwdriver
03
COMPATIBILITY
- Boom interface: Connects to booms up to 6″ flotation x 12″ skirt with Quick Latch couplers
- Coupler options: Aluminum 6061T in ASTM/Universal Slide or Quick Latch/Z; custom lengths and hole patterns available
04
PERFORMANCE
- Damage tolerant floats: Maintain virtually full flotation capacities even when heavily damaged
- Size range: Hose floats available in multiple diameters and capacities for varied lines
WHY OIL BOOM WATERRISER + HOSE FLOATS MATTER
Water levels move—your boom and lines should, too. This hardware keeps containment effective and hoses afloat with simple, durable components that install fast and stay working.
Oil Boom WaterRiser / Tide Riser System (WRS)

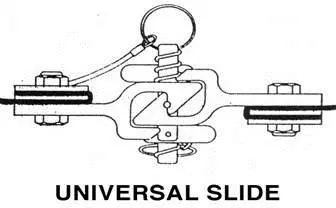

Containment Boom Couplers
Specifications: Aluminum 6061T Couplers Available in ASTM / Universal Slide or Quick Latch / Z configuration Custom lengths & hole configurations available
Hose Floats
| Hose Size | Inner Diam. | Outer Diam. | Length | Floating Capacity* |
|---|---|---|---|---|
| 1.5" Standard | 1-11/16" | 6" | 8" | 6.3# |
| 2" Standard | 2-3/16" | 6" | 8" | 5.9# |
| 2.5" Standard | 2-3/4" | 7" | 10" | 10.4# |
| 3" Standard | 3-1/4" | 7" | 10" | 9.3# |
| 3" Heavy Duty | 3-5/8" | 8" | 12" | 16.1# |
| 4" Standard | 4-1/4" | 8" | 12" | 13.3# |
| 4" Heavy Duty | 4-3/4" | 10" | 12" | 23.0# |
| 6" Standard | 6-1/4" | 10" | 12" | 18.0# |
| 6" Heavy Duty | 6-3/4" | 13" | 12" | 37.6# |
| Cable Float | 1-1/8" | 8" | 12" | 19.2# |
Frequently Asked Questions
How does the WaterRiser System attach to the beam?
If the beam top is open, the connector slips down over the top; if not, remove four bolts, place on the beam, and reassemble.
What boom sizes can the WaterRiser connect to?
It is ready to connect to any boom up to 6″ flotation by 12″ skirt equipped with a Quick Latch coupler.
What materials are the couplers made from and what types are available?
Couplers are Aluminum 6061T and available in ASTM/Universal Slide or Quick Latch/Z configurations, with custom lengths and hole configurations offered.
How are the hose floats constructed and installed?
They use a urethane “sandwich” shell with closed-cell foam; halves are joined around the hose with a Quick Snap stainless gear clamp using only a screwdriver.
Do the hose floats retain buoyancy if damaged?
Yes, they maintain virtually full flotation capacities even though damaged almost to destruction.
