- Compact surface skimming system for oil rigs, moon pools, and marine platforms.
- Floating weir skimmer captures surface oil and oily water with minimal setup.
- Includes BRUTE Marine Oil Water Separator — USCG / ABS / BV certified, IMO MEPC 107(49) compliant.
- BRUTE separator ships complete : motor, pump, piping, valves, integrated oil content monitor, and controls.
- Routinely discharges <3.2 PPM oil — far better than the 15 PPM international maritime requirement.
- Sized per application — BRUTE separator capacities from 2.2 GPM to 45 GPM match the platform.
- Easy setup and operation — drop the skimmer and activate the system.
- Built in the USA. ISO 9001 Certified .
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Moon Pool Oil Skimmer Features
01
Design

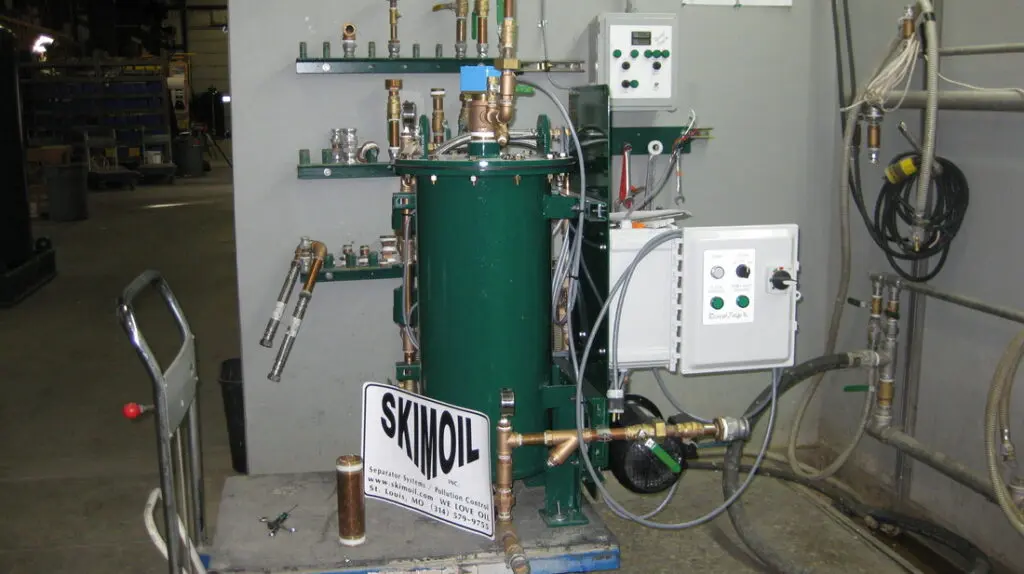

- Modular marine system : Floating Weir Skimmer (FWS) + matched hoses + BRUTE Marine Oil Water Separator + integrated oil content monitor.
- Compact construction : fits in tight shipboard or rig spaces.
- Certified compliance: USCG approved, ABS and BV certified, meets all IMO MEPC 107(49) requirements.
- Sized to your application : BRUTE family available in 5 capacities from 2.2 GPM through 45 GPM.
- Vessel material : carbon steel with marine epoxy/urethane coating for offshore service.
- Coalescing media : polypropylene / HDPE — excellent coalescing, very efficient.
02
PERFORMANCE
- Verified clean -water discharge: routinely runs under 3.2 PPM oil — far below the 15 PPM international maritime limit.
- Settable discharge limit : oil-in-water discharge can be set anywhere from 1 to 15 PPM via TPH monitor.
- Handles oil slugs : max free oil concentration 35% standard; can handle large temporary oil slugs up to 100%.
- Reliable separation : emulsion removal via high-capacity filtration — simpler and more trouble-free than membranes.
- Long media life : 1-year filtration media life expected, without bypassing.
- Failsafe operation: oil retained while clean water discharges back overboard or to the moon pool.
- Tamper-proof monitor : sealed and secured, USCG uses the discharge log to verify compliance.
03
INSTALLATION & OPERATION
- Drop-and-go skimmer deployment : place the FWS on the water surface and activate the BRUTE separator.
- System arrives pre-configured and ready for use — no complex setup.
- Minimal training required : solid-circuit controls (no PLC) keep operation intuitive.
- Real-time monitoring : automatic shutdown or recirculation when oil content exceeds the set discharge limit.
- Standard 6 dry contacts make integration with ship controls straightforward.
- Negative inlet head up to 12 ft / 3 M standard; 5 M high-lift option available.
- Water discharge head : 90 ft (any normal shipboard situation).
What’s In The Package
A complete Moon Pool Skimming System ships with:

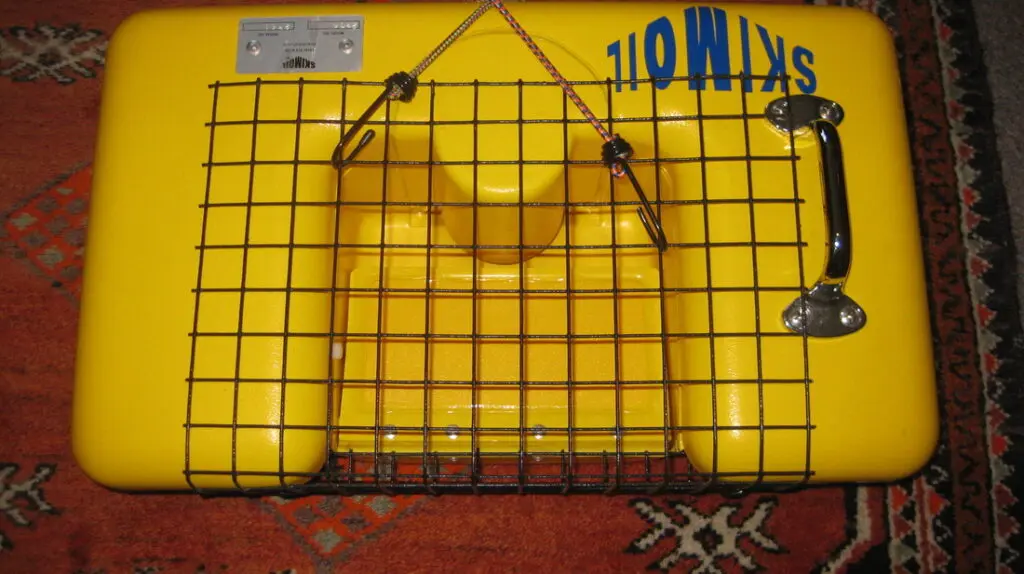

- Floating Weir Skimmer (FWS) — sized for the moon pool application
- Matched suction hose set sized to the system’s flow rate
- BRUTE Marine Oil Water Separator — capacity sized to the platform (2.2 / 5 / 11 / 25 / 45 GPM)
- Integrated oil content monitor (TPH) with discharge event logging — included with every BRUTE
- Motor, pump, piping, valves, and controls — all factory-installed
- Standard check valve on oil discharge (motor-operated valve optional for negative head applications)
- SkimOIL ® operation and maintenance documentation for each component
- Engineering support for installation and commissioning
Optional add-ons: skid mounting, drip pan, hazardous-area design, high-turbidity packages, and 5-meter high-lift option.
BRUTE Marine OWS Capacity Options
| Capacity | Height | Width | Depth | Dry Weight | Wet Weight | Pipe Connections (In/Out) |
|---|---|---|---|---|---|---|
| 2.2 GPM (0.5 m³/hr) | 50" (127 cm) | 27" (69 cm) | 40" (102 cm) | 450 lbs (204 kg) | 630 lbs (286 kg) | 3/4" – 3/4" |
| 5 GPM (1.1 m³/hr) | 56" (142 cm) | 28" (71 cm) | 49" (124 cm) | 725 lbs (329 kg) | 1,165 lbs (528 kg) | 1" – 3/4" |
| 11 GPM (2.5 m³/hr) | 69" (175 cm) | 36" (91 cm) | 56" (142 cm) | 1,250 lbs (568 kg) | 2,220 lbs (1,007 kg) | 1-1/2" – 1" |
| 25 GPM (5.7 m³/hr) | 72" (183 cm) | 41" (104 cm) | 78" (198 cm) | 2,610 lbs (1,184 kg) | 4,950 lbs (2,245 kg) | 1-1/2" – 1-1/2" |
| 45 GPM (10.2 m³/hr) | 75" (191 cm) | 54" (137 cm) | 99" (252 cm) | 3,550 lbs (1,610 kg) | 7,870 lbs (3,570 kg) | 2" – 1-1/2" |
Custom designs are available to vary specifications, including hazardous-area options. Combinations of specs may have pricing implications. Call us with your platform details and we’ll spec the right size.
Common Specifications (All BRUTE Sizes)
| Spec | Value | Advantage |
|---|---|---|
| IMO MEPC compliance | 107(49) | Meets latest international requirement |
| Expected oil in discharge water | Less than 3.2 PPM | Far exceeds 15 PPM requirement |
| Emulsion removal method | High-capacity filtration | Simpler / more trouble-free than membranes |
| Filtration media life | 1 year (no bypassing) | Long-lasting with no service interruption |
| Water discharge head | 90 ft of head | Designed for any shipboard situation |
| Oil discharge valve | Standard check valve | Optional MOV available where negative head exists |
| Control system | Solid circuit (no PLC) | Increased reliability |
| Control interface | 6 dry contacts | Easy to interface with ship controls |
| Test PSIG | 45 | Quality construction |
| Operating temp | 1–55 °C | Generally not affected by temperature |
| Max free oil concentration | 35% (slugs to 100%) | Handles large temporary oil slugs |
| Discharge oil-in-water (TPH) | <15 ppm (settable 1–15 ppm) | Adjustable to local requirement |
| Single-phase power | 110/120 VAC, 220 VAC | Any 1-phase power option |
| Three-phase power | 210/220, 380/415, 460/480, 575/600 VAC | 3-phase options to 600 VAC |
| Frequency | 50 or 60 Hz | Either frequency, no problem |
| Max amperage | 3.3–7.7 amps (15-amp circuit recommended) | Easy power requirement |
| Max turbidity for accurate TPH reading | 35 NTU (high-turbidity options available) | Handles real-world bilge water |
| Negative inlet head | 12 ft / 3 M (5 M high-lift option) | Flexible installation |
| Level sensor | Conductance | Highly reliable, trouble-free |
| Pump | Centrifugal with stainless-steel housing, on discharge side | No emulsions created by the pump |
| Coalescing media | Polypropylene / HDPE | Excellent coalescing, very efficient |
| Vessel metallurgy | Carbon steel, marine-coated | Built for marine service |
| Coating | Epoxy / urethane | Highest-quality marine coating |
| Skid / drip pan | Standard without skid (skid or drip pan optional) | Configure to your installation |
| Piping and manual valves | Bronze / red brass | Excellent corrosion resistance |
WHY MOON POOL SKIMMERS MATTER
How It Works: Set, Skim, Separate
Offshore operations require reliable oil recovery systems that work quickly and efficiently in confined spaces. These compact skimming packages combine floating recovery with dependable oil-water separation, helping crews manage surface oil without adding complexity or downtime.
Regulatory Compliance
- IMO MEPC 107(49) — the BRUTE separator is designed and certified to meet these requirements.
- USCG approved — Coast Guard compliance for U.S. waters.
- ABS and BV certifications available on request.
- All vessels over 400 Gross Tons (GT) are required to have an OWS on board, and regulations are increasingly extending to smaller boats.
- Tamper-proof oil content monitor : sealed and secured. USCG uses the discharge log to verify compliance.
- ISO 9001 Certified manufacturing — built in the USA.
Related Products
- Floating Weir Oil Skimmer (FWS) — the surface-skimming component of the Moon Pool system, available standalone.
- Marine Oil Water Separator (BRUTE) — the OWS at the heart of the Moon Pool package, available standalone.
- Marine Oily Water Separator – Mini-Brute — smaller marine OWS for vessels needing under 2 GPM capacity.
- BilgMon 488 Oil Content Monitor — the integrated 15 PPM bilge alarm and discharge monitor.
Frequently Asked Questions
How is the Moon Pool system sized for my platform?
We size around your expected oily-water volume and the moon pool’s working environment. The BRUTE separator family covers 2.2 GPM up to 45 GPM, and we match the floating weir skimmer and hose set to that flow rate. Tell us your vessel size, expected oil volume, and any specific compliance constraints, and we’ll spec the right combination.
What's the typical discharge quality?
Less than 3.2 PPM oil in independent tests — well under the 15 PPM IMO maritime requirement. The TPH monitor on the BRUTE can be set anywhere from 1 to 15 PPM depending on your specific discharge requirement.
Is the Moon Pool system USCG approved?
Yes — the BRUTE separator at the core of the system is USCG approved and certified to IMO MEPC 107(49). ABS and BV certifications are also available on request. The integrated oil content monitor logs every discharge event for USCG audit compliance.
What happens if oil content exceeds 15 PPM during operation?
The system automatically goes into recirculation or shutdown mode (configurable) so no oil-contaminated water makes it overboard. The discharge log records the event. When clean operation resumes, the system returns to normal discharge automatically.
Can the system be installed in hazardous areas?
Yes. Custom designs are available to vary specifications including hazardous-area options. Specify your area classification when quoting and we’ll build to suit.
What power options are available?
Single-phase: 110/120 VAC or 220 VAC. Three-phase: 210/220, 380/415, 460/480, or 575/600 VAC. Either 50 or 60 Hz. Max amperage 3.3–7.7 amps; we recommend a 15-amp circuit. Pretty much any shipboard or platform power configuration is supported.
What's the difference between the BRUTE and the Mini-Brute?
The BRUTE family covers 2.2 GPM to 45 GPM and is the standard Moon Pool component. The Mini-Brute is a smaller marine OWS for vessels with smaller flow needs. We’ll recommend whichever fits your platform — call us with your specs.
