- Removes free and emulsified oils: Advanced filter media captures both floating oils and oil-water emulsions.
- Compact and efficient design: Smaller footprint than a full marine separator, only 30″ high by 30″ wide by 8″ deep.
- Legal discharge record: Integrated oil content monitor logs every discharge for up to 18 months.
- USCG/IMO certified monitoring: Meets IMO/MEPC 107 (49) requirements with a 5-year certified monitor.
- Easy recertification: Replace the measuring cell to instantly renew certification for another 5 years.
- Cost-effective compliance: About one-third the size and cost of a full oil water separator.
- High oil removal capacity: Each cartridge removes up to ½ gallon of oil before replacement.
- Environmentally responsible: Prevents even small oil quantities from contaminating large water areas.
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Quick shipping means you can install, monitor, and get back to work without downtime.
OilSmart Bilge Water Separator Features
The Bilge Filter (TBF) is simple flow thru filter system that works with any bilge pump and removes oils from your bilge water.
01
Design
- Compact footprint: Only 30″ x 30″ x 8″, ideal where space is limited.
- Flow-thru system: Works with any bilge pump for seamless integration.
- Integrated monitoring: Optional oil content monitor provides discharge data.
02
PERFORMANCE
- Dual oil removal capability: Removes both free and emulsified oils from bilge water.
- High capacity filters: Each 20″ cartridge captures up to ½ gallon of oil.
- Certified monitoring: Oil content monitor has 5-year certification for accurate tracking.
03
WARRANTY
- Easy filter replacement: Low-cost cartridges are quick to change.
- Simple recertification: Replace the measuring cell to instantly renew compliance.
WHY THE BILGE FILTER MATTERS
The Bilge Filter effectively removes oils from bilge water without the need for a full-size separator. Its compact, cost-effective design makes it easy to retrofit in tight spaces, while the integrated oil content monitor tracks every discharge, providing a clear and reliable record. This makes it an ideal solution for small commercial vessels, fishing boats, and recreational craft.
The Bilge Filter System
The Bilge Filter (TBF) is simple flow thru filter system that works with any bilge pump and removes oils from your bilge water. The Bilge Filter system uses the same filter media that we use on the BRUTE/ B USCG/ABS/BV certified oily water separators.

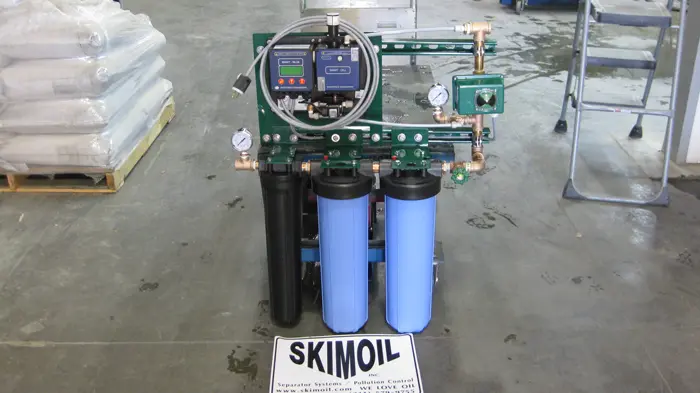

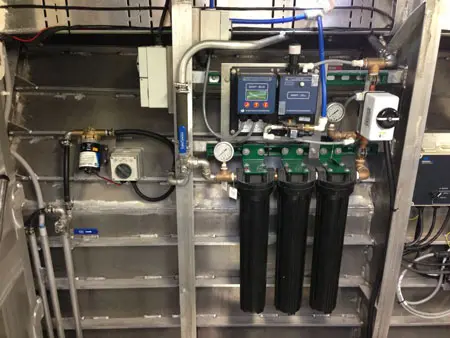

The #TBF3X system ass’y has 1 sediment filter and and two OilSmart oil removal filters with a gate valve and pressure gauge, that can work with any bilge pump. It plumbed, assembled and ready to be installed with just a simple inlet/outlet connections. With the #TBF3X system we can mount a IMO/MEPC 107 (49) oil content monitor behind that is USCG/ABS/BV certified and you can have a clear record of your oil in water discharges. The monitor can log the last 18 months of discharges thru the unit. Every time your pump kicks on——–it’s logged.
Want proof you are not over limits on oil?
How about TheBilgeFilter with an Oil Content Monitor?
This does not make it a separator — but it does give you a USCG approved monitor that shows the water quality of the water discharged thru this system. Unlike a full blown marine oil water separator that is usually a minimum of 30” square and 6′ tall, The Bilge Filter with the monitor is only 30″ high by 30″ wide x 8″ deep
These oil content monitors come with a 5 year certification which means it is certified to meet IMO/MEPC 107 (49) requirements for 5 years——-as long as the seal on the unit is not broken or missing. After 5 years it has to be re-calibrated to be certified as compliant with regulations. Big trouble awaits you if your monitor is out of certification because you would then be out of compliance with IMO/MEPC 107 (49) requirements and operating illegally. While there are a few recalibration services around, doing that takes you out of operation. The solution or work-around for that is simply getting a new measuring cell and simply installing it on your oil content monitor and you are then instantly recertified for another 5 years——-as long as you don’t break the seal on the measuring cell. It’s a simple quick installation and you’re back in business and back to being certified. Contact us directly for a certified replacement measuring cell.
Gives you a legal record of the water you’ve discharged thru the system. Shows the USCG — you’re trying to do the right thing. If you are not mandated to have a separator, this could be the answer. For 1/3 the size and cost of a Oil Water Separator!
TheBilgeFilter Brochure and Spec Sheet
How about TheBilgeFilter with an Oil Content Monitor?
| Want to meet the EPA or Coast Guard to discuss your illegal oily discharge? Don’t have room for a full sized Oily Water Separator? The FEDS are coming to a boat near you. The VGP is hapening! | NEED EVEN MORE REASONS? It’s against the law to pump oil into water! TheBilgeFilter can save you from a $25,000 fine. The Federal Water Pollution Act (aka Clean Water Act) disallows even the appearance of a visible sheen on the water. |
|---|
Frequently Asked Questions
What types of oils can the Bilge Filter remove?
It removes free-floating oils, emulsified oils, gas, diesel fuel, and other hydrocarbons.
How long does the oil content monitor stay certified?
The monitor is certified for 5 years as long as the seal is not broken or missing.
How is the monitor recertified after 5 years?
Install a new measuring cell to instantly renew certification for another 5 years.
How much oil can one filter cartridge remove before replacement?
Each 20″ cartridge can remove up to ½ gallon of oil.
Can the Bilge Filter work with any bilge pump?
Yes, it is a flow-thru system compatible with any bilge pump setup.
