- Handles big solids: Can handle LOTS of solids and even big solids on oil skimming projects
- Solids advantage over typical 1″: Typical 1″ pumps pass only 1/8″–1/4″; these are built for real debris
- Rotatable connections: 180° inlet/outlet rotation to configure exactly how you need
- Service-friendly air side: Air side can be serviced without opening the wet (diaphragm) side
- Lube-free operation: Pumps operate LUBE FREE for simple maintenance
- Material options: Standard cast aluminum with Buna seals; cast iron or stainless available
- Stocked sizes: 1″ and 2″ on the shelf with matching suction/discharge hose kits
- High head capability: Heads up to 125 psi or 289 ft. of water
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Got oil with junk in it? We keep heavy-duty air-operated diaphragm pumps ready so you can move solids-laden product now, not later. Just ask.

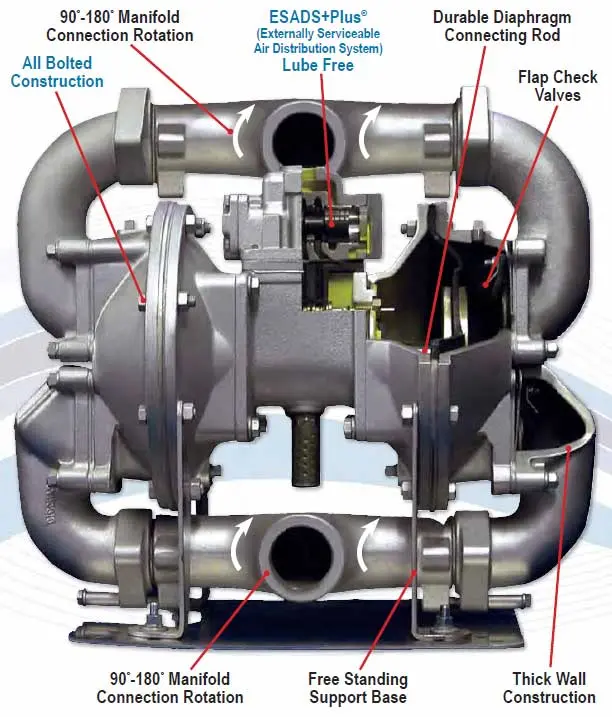

Air Diaphragm Pump Features
01
Design
- Built for solids: AOD pumps that can handle LOTS of solids and even big solids
- Configurable plumbing: 180° inlet/outlet connection rotation
- Construction choices: Standard cast aluminum with Buna seals; cast iron or stainless steel available
02
PERFORMANCE
- No-lube air valve: No-lube, no-stall design
- High head: Heads up to 125 psi or 289 ft. of water (8.8 Kg/cm² or 88 meters)
- Flow range: 0–70 gpm (1″) and 0–140 gpm (2″)
- Solids handling: Up to 1″ (1″ model) and up to 2″ (2″ model)
03
INSTALLATION & MAINTENANCE
- Service access: Air side can be serviced without opening the wet side
- Ready to deploy: 1″ and 2″ pumps on the shelf alongside skimmers and hose kits
- Lube-free: Operates LUBE FREE
04
MODELS
- S/HDF1/X — 1″ AOD: 1″ NPT; 0–70 gpm; up to 1″ solids; 0.10 gal displacement/stroke; 125 psi max; shipping weight: Aluminum 48 lbs, Cast Iron 76 lbs, Stainless 79 lbs
- S/HDF2/X — 2″ AOD: 2″ NPT; 0–140 gpm; up to 2″ solids; 0.43 gal displacement/stroke; 125 psi max; shipping weight: Aluminum 86 lbs, Cast Iron 168 lbs, Stainless 168 lbs
WHY SKIMHAWG AOD PUMPS MATTER
Oil skimming projects always bring debris. These pumps move the solids other 1″ units choke on, run lube-free, and service easily—so the skimmers stay fed.
What They Are: Air Operated Diaphragm Pumps
Specifications
The beauty of our floating Big Ass Surface Skimmer is that it has only one moving part-the hinged weir and it can work with any pump that can pull suction. We’ve had the floating weir skimmers on the market for over 20 years, so they are a well proven and reliable surface skimmer that automatically self adjusts to the pumps flow rate-allowing the operator to take as little as 1/8” to over 3” of water off the surface—–without affecting the underlying water or in the case the underlying settled coal ash. We now have these floating weir skimmers working in several power plants dewatering ash ponds. Ironically several years ago several power plants were using the smaller FWS units to remove floating centospheres of ash from the surface of water in many similar ponds.
Like most everything else that we all used to do, we’ve found a better way to do it today. This is certainly true of coal fired power plants and their waste ash disposal and storage. Back when the power plants started using ponds for storing the ash under a water cap it was probably the recognized best method. Out of sight and out of mind. Somewhat.
Specifications: S/HDF1/X — 1″ AOD Pump Specs
Port Size 1” NPT
Capacity 0 to 70 gpm (265 lpm)
Air Distribution Valve No-lube, no-stall design
Solids-Handling Up to 1″ (25.4 mm)
Heads Up To 125 psi or 289 ft. of water (8.8 Kg/cm² or 88 meters)
Displacement/Stroke .10 gallons (.38 liters)
Max Operating Pressure 125 psi (8.6 bar)
Shipping Weight Aluminum: 48 lbs. (21 kg) Cast Iron: 76 lbs. (34 kg) Stainless Steel: 79 lbs. (36 kg)
S/HDF1/X Performance and Specs

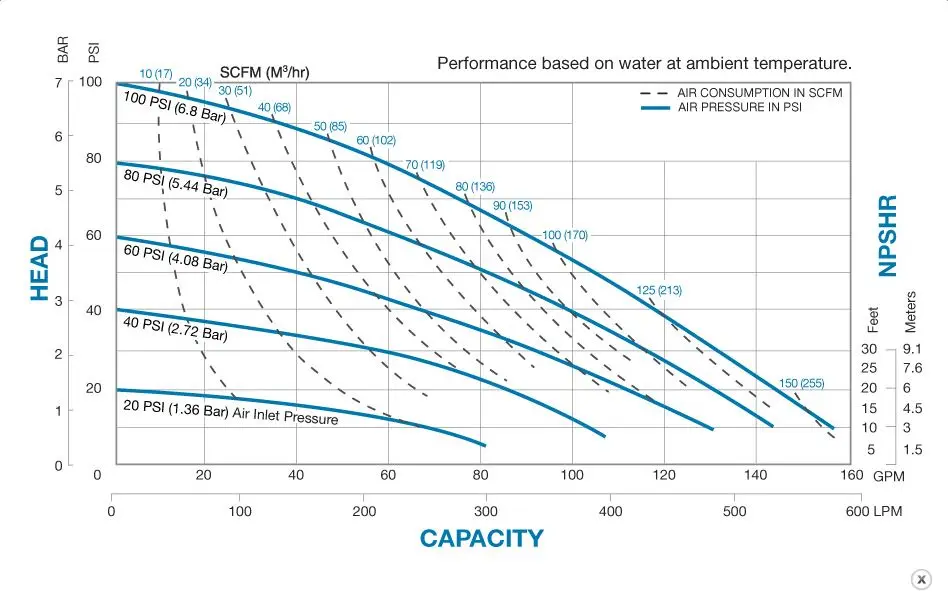

SkimHawg Model S/HDF2/X–2″ AOD Pump Specs:
Port Size 2″ NPT
Capacity 0 to 140 gpm (530 lpm)
Air Distribution Valve No-lube, no-stall design
Solids-Handling Up to 2″ (50 mm)
Heads Up To 125 psi or 289 ft. of water (8.8 Kg/cm² or 88 meters)
Displacement/Stroke 0.43 gallons (1.6 liters)
Max Operating Pressure 125 psi (8.6 bar)
Shipping Weight Aluminum: 86 lbs. (39 kg.) Cast Iron: 168 lbs. (76 kg) Stainless Steel: 168 lbs. (76 kg)
Frequently Asked Questions
What solids can the 1″ model handle?
The SkimHawg model S/HDF1/X can handle up to 1″ (25.4 mm) solids.
How much flow does the 2″ model provide?
The SkimHawg Model S/HDF2/X has a capacity of 0 to 140 gpm (530 lpm).
Do these pumps require lubrication to run?
No, they operate LUBE FREE and use a no-lube, no-stall air distribution valve.
Can I re-orient the ports to fit my piping?
Yes, the inlet/outlet has a 180 degree rotation to configure as needed.
What materials are available?
Standard pumps come in cast aluminum with Buna seals, with cast iron or stainless steel available.
