- Oil/water discrimination: Alarm and sensor identify whether liquid is oil or water for safer discharge and response
- Plug-and-play alarm: System activates on presence of liquid and indicates oil or water status
- Remote monitoring ready: Dry contacts provided for Oil, Water, and High Liquid signals
- Clear visual/audible alerts: Red beacon, yellow oil, white water indicators plus horn at 85 dB at 10 feet
- Proven reliability: Third-party tested for over 1,000,000 operations in oil and water without failure
- Certified for use: CSA certified and UL listed for the United States and Canada
- Outdoor-ready option: NEMA 4X enclosure version with clear front and swing panel for easy wiring
- Broad applications: Suited for sumps, utilities, storage tanks, and any location with leak or high liquid conditions
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Need water-only pumping and clear leak alerts? Get a plug-and-play alarm with oil/water identification and remote monitoring—fast and hassle-free. Just ask.
OilSmart High Liquid Level Alarm Features
01
Design
- Plug-and-play configuration: Alarm system activates with any liquid and identifies if oil or water is present
- Outdoor-rated option: NEMA 4X enclosure with clear front and swing panel for easy wiring
- Certified build: CSA certified and UL listed for the United States and Canada
02
PERFORMANCE
- Oil/water differentiation: All-in-one LiquidSmart Sensor triggers visual and audible alarms
- Proven durability: Third-party tested at over 1,000,000 operations in oil and water without failure
- Audible notification: Alarm horn sounds at 85 decibels at 10 feet
03
CONTROLS & INDICATORS
- Visible status: Red beacon alarm, yellow light for oil, white light for water
- User controls: Alarm test and silence buttons for quick checks and acknowledgment
- Remote integration: Complete panel dry contacts for Oil, Water, and High Liquid
04
APPLICATIONS
- Facilities & utilities: Elevator sumps; substations; power plants; underground vaults; transformer barriers
- Industrial & marine: Industrial sump or marine application; oil storage tanks; inner liner or between-walls tank monitoring
- General leak/high level detection: Any place that may have a water or oil leak or high liquid condition
WHY OILSMART ALARM SYSTEM MATTERS
Identifying oil versus water at the sensor prevents the wrong liquid from moving downstream and gives you clear, remote-ready alerts—so you can act fast on leaks and high liquid conditions.
OilSMART Alarm System S/OSS-05/X
The OilSMART Alarm System S/OSS-05/X is a plug and play alarm that differentiates between oil and water. The system is complete with visible mounted indicators and dry contacts for remote monitoring. The alarm will activate with the presence of any liquid and will identify if oil or water is present. With the unique ability to differentiate between oil and water, the OilSmart Alarm System is designed as a high liquid alarm or leak detector system.
The OilSmart Alarm system is triggered by the new all-in-one LiquidSmart Sensor. Alarms are equipped with both visual and audible signals. The new LiquidSmart Alarm Sensor will activate the alarm and indicator lights.
>>>>Click Here For Product Brochure/Technical Data Sheet
FEATURES
- CSA Certified, UL listed for the United States and Canada
- Third party tested at over 1,000,000 operations in oil and water without failure
- Alarm sensor differentiates between oil and water, includes Liquid Smart Sensor with 20′ cord (Additional cord length available up to 250′)

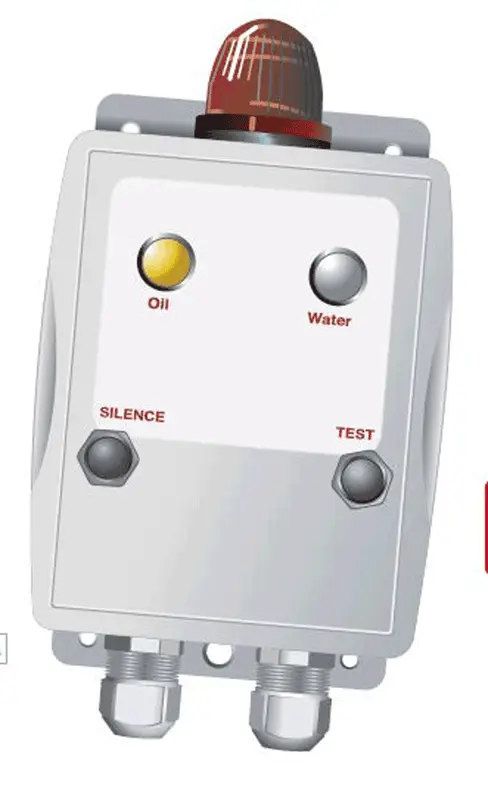

- Alarm Visible Indicators: Red Beacon Alarm Light, Yellow Light for Oil, White Light for Water, Alarm Test and Silence Buttons
- Alarm Horn sounds at 85 decibels at 10 feet
- 10′ heavy duty power cord Complete Panel Remote Monitoring Dry Contacts: Oil, Water, and High Liquid
APPLICATIONS
- Elevator Sumps
- Electric Utilities: Substations, Power Plants, Underground Vaults, and Transformer Barriers
- Industrial Sump or Marine Application
- Oil Storage Tank
- Inner liner monitoring or between walls of a storage tank, tank gauging
- Any place that there may be a water or oil leak or high liquid condition
OilSMART Alarm System S/OSA-06/X

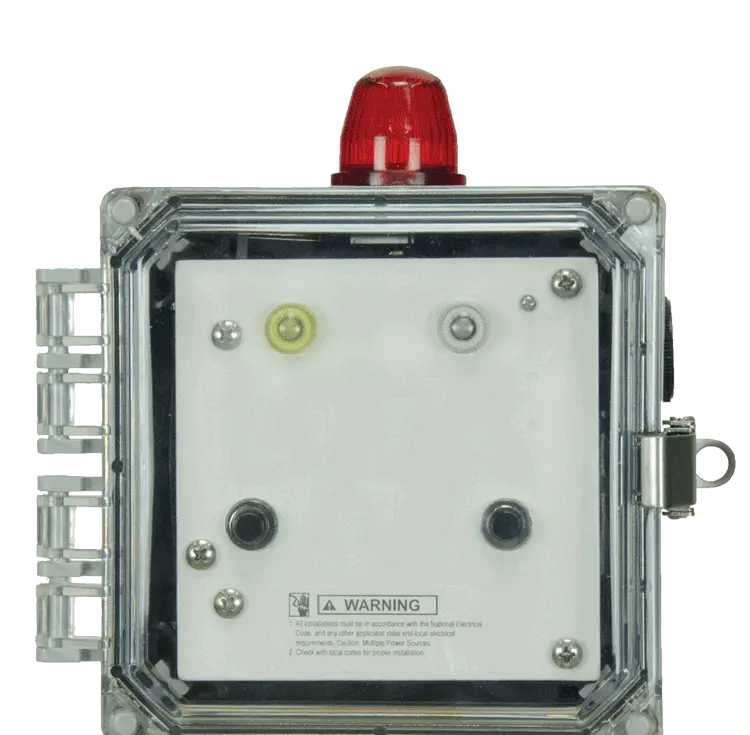

The S/OSA-06/X OilSmart Alarm has the unique ability to differentiate between oil and water. This product is housed in an outdoor rated NEMA 4X enclosure. The system features a clear front with visible mounted oil and water indicators, alarm test and silence buttons. In addition to these features the swing panel allows for easy wiring of the LiquidSmart Sensor and incoming AC power.
The S/OSA-06/X is an OilSmart Alarm designed for outdoor applications. The alarm is housed in an outdoor rated NEMA 4X enclosure convenient for hardwiring.
>>>>Click Here For Product Brochure/Technical Data Sheet
FEATURES
- CSA, UL Listed for the United States and Canada
- Allows for detection of a leak or liquid level at any predetermined level
- Includes Liquid Smart® Alarm Sensor
- Sensor differentiates between oil and water
- Alarm has unique ability to indicate if oil or water is present
- Accessible terminal block for dry contacts
APPLICATIONS
- Elevator
- Electric Utilities ( Substations, Power Plants, Underground Vaults, and Transformer Barriers)
- Industrial Sump or Marine Application
- Oil Storage Tank
- Inner liner monitoring or between walls of a storage tank, tank gauging
- Any Place that there may be a water or oil leak or high liquid condition
Frequently Asked Questions
What does the alarm system detect?
It activates with the presence of any liquid and identifies whether oil or water is present.
How are alerts shown to operators?
The system provides a red beacon alarm light, a yellow light for oil, a white light for water, plus an audible horn at 85 dB at 10 feet with test and silence buttons.
Can the system tie into remote monitoring?
Yes, it includes dry contacts for Oil, Water, and High Liquid to integrate with remote panels or systems.
Is the alarm rated for outdoor installation?
The S/OSA-06/X version is housed in an outdoor-rated NEMA 4X enclosure with a clear front and swing panel for wiring.
What certifications does the system have?
It is CSA certified and UL listed for the United States and Canada, and has been third-party tested for over 1,000,000 operations in oil and water without failure.
