- Adjustable oil level detection: Sensor position can be moved vertically without tank entry
- Dual float alarm system: Alerts for both high oil presence and low fluid levels
- Simple top-access installation: Drop sensors into open or closed tanks without side fittings
- Long cable reach: Comes with a 30′ cord standard, extendable up to 100′
- Rugged alarm panel: NEMA 4X enclosure with 85 dB horn, alert light, and dry contacts
- No moving parts: Extremely low-maintenance and hard to damage in the field
- Field-adjustable sensor points: Sensor levels are infinitely adjustable along the cable
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Need a smarter way to monitor oil levels? We’ve got tank alarm systems in stock and ready when you are. No delays, no guesswork—just plug, drop, and protect.
Oil Water Separator High Oil Alarm System Features
01
INSTALLATION
- Top-access deployment: Sensors can be dropped in from above without modifying the tank
- Side fitting not required: Easily installed in both open and closed tanks
- Extended reach: Includes a 30′ sensor cord, with options up to 100′
02
OPERATION
- Infinitely adjustable float levels: Control alarm points with precision, no mechanical stops
- Dual monitoring: Detects both high oil levels and low water/oil levels
03

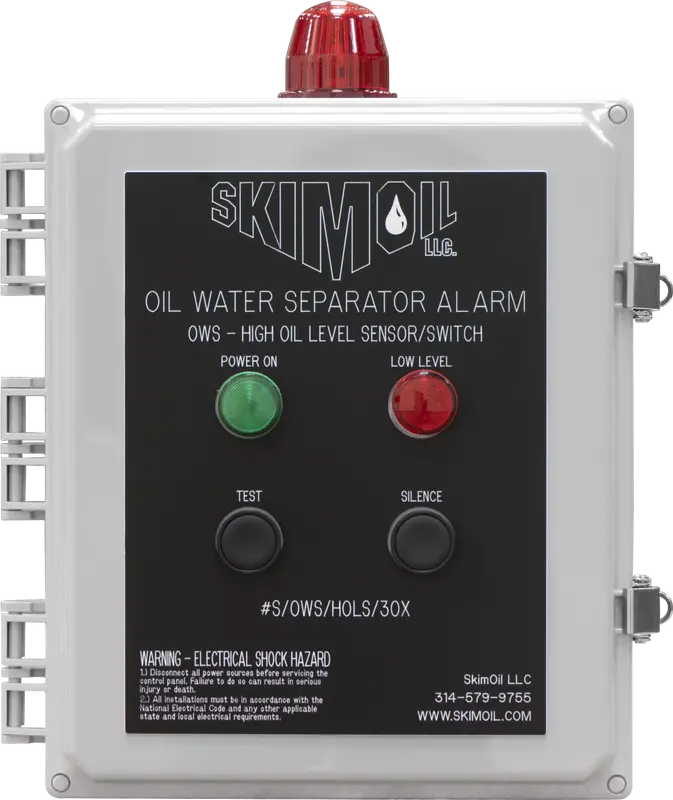

ALARM PANEL
- High-visibility alert: Panel includes an 85 dB horn and alert light
- Flexible control outputs: Provides multiple dry contacts for external controls
- Durable enclosure: Weather-resistant NEMA 4X panel rated for harsh environments
04
MAINTENANCE
- No moving parts: Virtually zero maintenance or failure risk
WHY OIL LEVEL SENSOR + ALARM SYSTEM MATTERS
When you’re managing oily waste, knowing exactly when to pump or shut down matters. This system lets you monitor and control levels without ever opening the tank or guessing—giving operators full awareness and automation capability.
Smart Oil Level Monitoring for OWS
Frequently Asked Questions
What triggers the alarm system in this setup?
The system uses float switches to detect high oil levels or low liquid levels inside the tank.
How do I adjust the sensor without entering the tank?
The sensor hangs from a cable that lets you slide its position vertically to the desired trigger point.
Can this system be installed on sealed tanks?
Yes, as long as you have top access, you can drop the sensor into closed tanks without side fittings.
What power supply does the alarm panel use?
The system operates on standard 110V.
How loud is the alarm signal?
The panel includes an 85 dB audible horn and a visual alert light.
