The MarineVAP-Marine Waste Water Evaporator
Get a Quote
- Zero Liquid Discharge: Turns waste water into vapor for safe atmospheric release
- Fully automatic operation: Hands-off functionality with simple controls and safety cutoffs
- One moving part: Reduces maintenance and increases reliability onboard
- Energy-efficient design: Insulated stainless steel tank conserves heat and power
- Failsafe monitoring system: Dual thermostats and safety shutoffs prevent overheating or damage
- Clear visual indicators: Sight glass and signal alerts help monitor status easily
- Field-drainable unit: Partial or full draining possible via two accessible drain valves
- Scalable sizes: Available in 7 models with capacity up to 25 gallons/hour
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Need to evaporate bilge water, gray water, or treated black water? We’ve got plug-and-play MarineVAP units on hand and ready to ship. No more overboard discharges. No more waiting.
The MarineVAP-Marine Waste Water Evaporator Features
01
Operation
- Automatic shutoff: System powers down safely when water runs low or detects contamination
- Simple interface: Just flip the switch — no operator training required
- Signal-ready: Built-in alerts let you know when the unit needs attention
02
Design
- Stainless steel tank: Durable, corrosion-resistant tank with high-efficiency insulation
- One moving part: Minimizes maintenance, maximizes lifespan
- Sight glass window: Lets you see water level and internal activity at a glance
03
SAFETY & MONITORING
- Dual safety shutoffs: Prevent overheating and protect the system
- Dual thermostats: Added redundancy for temperature regulation
- High/low level switches: Ensures safe and controlled operation
04
CAPACITY
- Multiple sizes available: Choose from 7 different units to suit your onboard waste volume
- Evaporates up to 25 GPH: Efficient water removal for a wide range of marine applications
WHY MARINEVAP MATTERS
For vessels in No Discharge Zones, this system is the final piece of your wastewater strategy. It’s rugged, automatic, and eliminates the need for overboard discharge — permanently.
Zero Discharge Wastewater Evaporation
Bilge water – Gray Water – Treated Black Water Evaporator
NO DISCHARGE IS A GOOD DISCHARGE

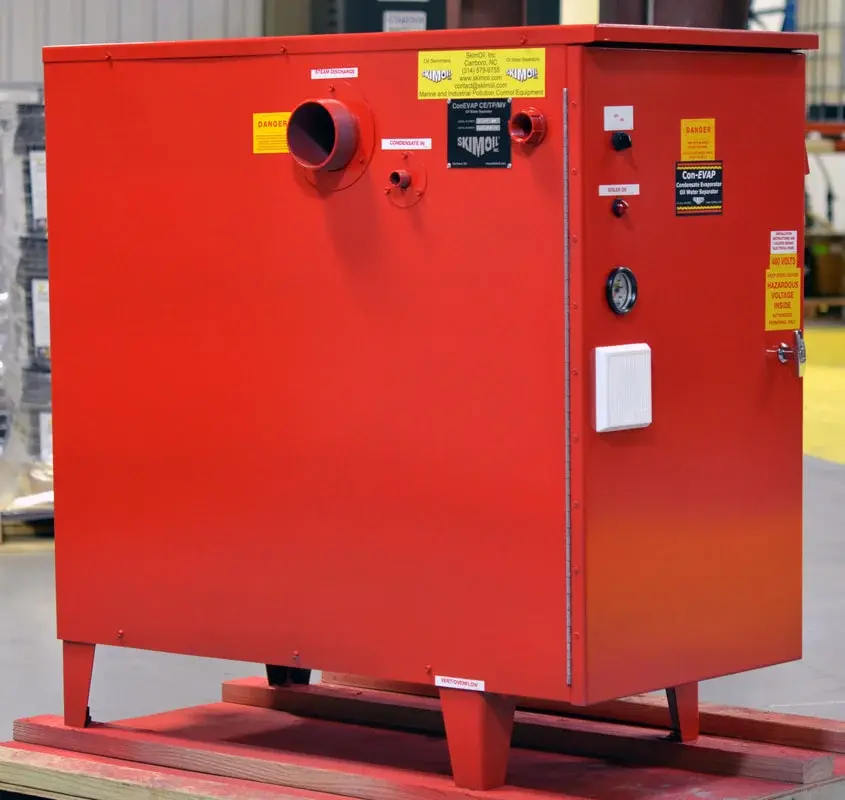

SkimOIL ® ’s MarineVAP (MV) system is an electric powered evaporator system that safely and automatically turns waste water to vapor and evaporates it away to atmosphere.
The MarineVAP can be the final chapter for your on-board waste water management. W ith only one moving part, this simple MarineVAP system can evaporate many on-board waste water streams without operator intervention or maintenance requirements, other than to drain some concentrate after several tanks full have already been evaporated away.
With simple controls and full monitoring capabilities the MarineVAP can turn your boat or vessel into it’s own “NO DISCHARGE ZONE”
It doesn’t get any easier or safer than ZERO LIQUID DISCHARGE (ZLD)
Operation & Safety Features
Available in 7 sizes the WasteWaterVAP can evaporate up to 25 gallons per hour.
SkimOIL®: Innovation in Wastewater Management
Bilge Water, Gray Water, Treated Black Water “Nothing overboard!” No discharge zone? No problem! ZERO LIQUID DISCHARGE! GONE – done – end of story!
DO YOU HAVE MORE WATER TO GET RID OF?… CLICK OUR BRUTE MARINE OIL WATER SEPARATOR LINK Meets all IMO MEPC 107(49) Requirements.
No discharge is safe discharge. Completely automatic hands-off operation. No Discharge Zones (NDZ) by State
SkimOIL ® is a specialty design manufacturer, consultant and distributor of marine and industrial pollution control equipment and systems. For more than 25 years, SkimOIL ® has provided businesses with solutions to special waste disposal problems and pollution control. SkimOIL ® systems, used in more than 40 countries around the globe, are built to address the unique problems of each business. SkimOIL ® ’s innovative equipment and technologies can be used off the shelf or customized to meet the needs of individual companies.
| Model No. | Capacity (Lbs/Hr & Gals/Hr) |
KW | Amps | Volts | Shipping Weight | Phase | Dimensions H x L x W |
|---|---|---|---|---|---|---|---|
| MV-06 | 15.8 / 1.9 | 6 | 11 | 480 | 546 Lbs | 3 | 48-1/8″ x 46-1/8″ x 20-3/8″ |
| MV-12 | 34.2 / 4.1 | 12 | 19 | 480 | 550 | 3 | 48-1/8″ x 46-1/8″ x 20-3/8″ |
| MV-18 | 51.6 / 6.2 | 18 | 21.7 | 480 | 618 | 3 | 48-1/8″ x 46-1/8″ x 24-3/8″ |
| MV-24 | 69.1 / 8.3 | 24 | 28.9 | 480 | 624 | 3 | 48-1/8″ x 46-1/8″ x 24-3/8″ |
| MV-36 | 104.1 / 12.5 | 36 | 43.4 | 480 | 633 | 3 | 48-1/8″ x 46-1/8″ x 24-3/8″ |
| MV-54 | 156.6 / 18.8 | 54 | 65.0 | 480 | 819 | 3 | 48-1/8″ x 46-1/8″ x 44-3/8″ |
| MV-72 | 209.1 / 25.1 | 72 | 86.7 | 480 | 834 | 3 | 48-1/8″ x 46-1/8″ x 44-3/8″ |
Frequently Asked Questions
What types of wastewater can the MarineVAP system handle?
It can evaporate bilge water, gray water, and treated black water safely.
How does the system prevent overheating or overflow?
It includes high/low level cutoffs, dual thermostats, and automatic safety shutoffs.
Does the MarineVAP require operator supervision?
No. It runs automatically and shuts down when necessary, with signal alerts for status updates.
What happens if the system detects oil or solids in the water?
It shuts down automatically to prevent contamination or damage, then signals for draining or attention.
Can the system be used in Zero Discharge Zones?
Yes, it is designed to operate safely without any overboard discharge.
Why Choose The Marinevap™ Zero Discharge System?
- Electric-powered evaporator for bilge, gray, and treated black water
- One moving part — minimal maintenance, maximum reliability
- Corrosion-resistant stainless steel tank with high-efficiency insulation
