- Automatic pump control: Removes water while preventing oil discharge
- Built-in alerts: Visual and audible alarms notify of high oil or water conditions
- Regulation compliant: Helps meet Elevator Code ASME A17.1 and environmental standards
- Plug & play design: Quick installation with pre-configured cords and sensors
- Dual liquid detection: Differentiates between oil and water using smart sensors
- UL/CSA certified: Rated for both U.S. and Canadian compliance
- Remote monitoring ready: Includes dry contacts for off-site system alerts
- Durable enclosure: Heavy-duty NEMA 4X polycarbonate housing for indoor/outdoor use
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Protecting the environment isn’t optional. That’s why we keep these panels ready. When you need sump protection now—not next quarter—we’ve got you covered.
OilSmart Simplex Panel Features
The OilSmart Simplex Panel model S/OSSIM-30/X when combined with a manual sump pump, will automatically pump water without the risk of pumping oil into the environment.
01
FEATURES
- Panel and Controls UL Listed for United States and Canada.
- Pump Control and High Liquid Alarm differentiate between oil and water – Includes Oil Smart®-Pump Control, and Liquid Smart® Alarm Switch, and 20′ Cords
- Pump Control Visible Indicators: Pump Hand-Off-Auto (H.O.A.) Switch, Green Pump Run Light and Power On Light
- Alarm Visible Indicators: Red Beacon Alarm Light, Yellow Light for Oil, White Light for Water, Alarm Test and Silence Buttons
- Alarm Horn Sounds at 85 Decibels at 10 Feet
- Complete Panel Remote Monitoring Dry Contacts: Oil, Water, High Liquid
02
SPECIFICATIONS
- 10″x8″x4″ UL-50 Type 6P Listing
- Outdoor/Indoor NEMA 4X enclosure, heavy duty Polycarbonate construction
03
APPLICATIONS
- Elevator
- Electric Utilities ( Substations, Power Plants, Underground Vaults, and Transformer Barriers)
- Any Industrial Sump or Marine Application
WHY OILSMART MATTERS
You don’t get a second chance when oil hits the environment. This smart panel knows the difference between oil and water—so only the clean stuff gets pumped out. Trusted in elevators, vaults, and utilities where compliance and reliability are non-negotiable.
The Need: Responsible Sump Pumping Without Risk
The OilSmart Simplex Panel model S/OSSIM-30/X when combined with a manual sump pump, will automatically pump water without the risk of pumping oil into the environment. Additionally, the system alerts maintenance or building personnel in the event of a high oil or high water condition. Installation of the Simplex Panel allows you to comply with Elevator Code ASME A17.1 and State/Federal regulations while reducing the risk of adverse publicity, fines and expensive cleanup costs. Our OilSmart Systems incorporates pump controls and alarm sensors that differentiate between oil and water, allowing companies to responsibly discharge the water without worrying about contamination. Click Here For Product Brochure

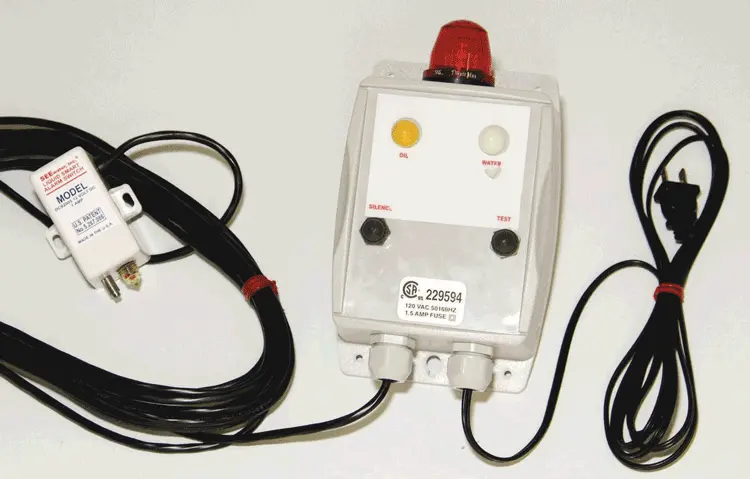

The OilSmart S/OSS/A/SP System
The OilSmart S/OSS/A/SP System , when combined with a manual sump pump, will automatically pump water without the risk of pumping oil into the environment. Additionally, the system alerts maintenance or building personnel in the event of a high oil or high water condition. Installation of the S/OSS/A/SP allows you to comply with Elevator Code ASME A17.1 and State/Federal regulations while reducing the risk of adverse publicity, fines and expensive cleanup costs. The system is a plug & play system that includes the OilSmart Pump Controller, Model #S/OSS20PBPR6/X and the OilSmart Alarm, Model # S/OSA-05/X.
S/OSS/A/SP FEATURES
The OilSmart Simplex Panel model S/OSSIM-30/X when combined with a manual sump pump, will automatically pump water without the risk of pumping oil into the environment.
01
S/OSS/A/SP FEATURES
- Plug & Play for Easy Installation
- Includes Oil Smart Pump Switch (OSS20PBPR6) with 20′ Cord and Piggy Back Plug
- Includes Oil Smart Alarm (OSA-05) with 10′ Power Cord and Liquid Smart Alarm Switch with 20′ Cord
- UL/CSA Certified for the United States and Canada (Panel and Controls)
- Pump Control and Alarm Components Differentiate Between Oil and Water
- 120VAC, Single Phase, 60 Hz.
- Alarm Visible Indicators: Red Beacon Alarm Light, Yellow Light for Oil, White Light for Water, Alarm Test and Silence Buttons
- Alarm Horn that Sounds at 85 Decibels at 10 Feet
- Complete Panel Remote Monitoring Dry Contacts: Oil, Water, High Liqui
02
APPLICATIONS
- Elevator Sumps
- Electric Utilities ( Substations, Power Plants, Underground Vaults, and Transformer Barriers)
- Manufacturing Facilities
- Any application where there is a need to remove water while containing oil
Frequently Asked Questions
What does the OilSmart system do when oil is detected?
It prevents the pump from activating and sounds an alarm to notify of the oil condition.
How does the panel differentiate between oil and water?
It uses smart sensors designed to distinguish between water and hydrocarbons.
Can the system alert personnel remotely?
Yes, it includes dry contacts for remote monitoring of oil, water, and high liquid events.
Is this system suitable for outdoor use?
Yes, the NEMA 4X enclosure is weather-resistant and rated for indoor and outdoor environments.
Does this panel meet regulatory standards?
Yes, it complies with ASME A17.1 and is UL/CSA certified for U.S. and Canadian use.
