- Prevents oil discharge: Automatically shuts off when oil is detected, pumping only water
- Sensor-based operation: Uses a reliable capacitance-type sensor with no moving parts
- No float switches: Eliminates risk of fouling or mechanical failure from stuck floats
- Easy installation: Directly controls pumps up to 1 HP with or without piggyback plug
- Built-in ON/OFF differential: Comes standard with 2.5″ or 6″ differential options
- Flexible voltage support: Compatible with 120V, 230V AC or 12/24V DC systems
- Versatile applications: Ideal for elevator sumps, utility vaults, transformer pits, and marine uses
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Need water pumped but not oil? These switches are ready to go—no backorders, no delays.

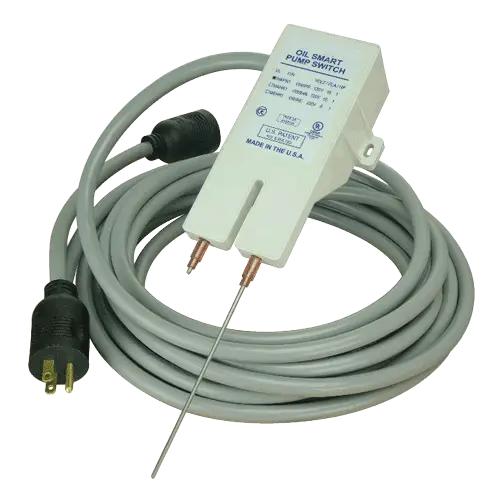

OilSmart Sump Pump Switch Features
The OilSmart Pump Switch, when combined with a non-auto sump pump, will allow water to be pumped without the risk of pumping oil.
01
Design
- Capacitance-type sensor: Accurately distinguishes water from oil with no moving parts
- Compact & durable: Industrial-grade unit for harsh environments
- No floats: Eliminates mechanical hang-ups or failures
02
PERFORMANCE
- Water-only pumping: Automatically shuts pump off if oil is detected
- Built-in differential: Comes with 2.5” or 6” ON/OFF ranges
- Direct pump control: Operates sump pumps from 0 to 1 HP
03
Installation
- No control panel needed: Works as a standalone controller
- Multiple voltage options: 120/230V AC or 12/24V DC available
- Piggyback or hardwired: Installs with or without piggyback plug
WHY OILSMART PUMP SWITCH MATTERS
This sensor-based switch gives you total peace of mind—pumping water while keeping oil out of the environment. It’s a must-have for any facility focused on safe, efficient, and reliable water removal.
Overview & Operation
The OilSmart Pump Switch, when combined with a non-auto sump pump, will allow water to be pumped without the risk of pumping oil. The switch is ideal for elevator sumps, transformer containment areas, parking garages, and city underground vaults.
NO Moving parts BUBBA PROOF NO float switches to get fouled or hung up. Capacitance type sensor
The OilSmart™ water pump switch & sensor lets you safely pump water only! This switch energizes a pump, valve, alarm or whatever’s wired into it when it detects water, not oil. If it detects oil, it shuts the pump DOWN! It’s deadly effective and economical to use!
Click Here For Product Brochure/Technical Sheet
The OilSmart Pump Switch is a stand-alone pump controller requiring no expensive pump control panels. It will operate any pump up to 1HP. All models include built-in ON and OFF differential of 2.5”or 6”. It is an industrial grade switch that differentiates between oil and water used to control pumps in elevators, transformer oil containment areas, underground utility vaults, marine, and other applications. The OilSmart Switch can be an integral part of the pump assembly or a stand alone component wired to the pump or a control valve. Since 1995, the Original and Patented OilSmart Switch has been the reliable choice for safely pumping water. Installation of the unit allows you to comply with State and Federal Regulations while reducing the risk of adverse publicity, fines and expensive cleanup costs.
Features & Applications
FEATURES
Directly controls sump pumps 0 to 1 hp(piggyback): quick installation
Available in 120 VAC, 230 VAC 50/60 Hz., or 12/24 VDC
No expensive electrical panel required
Sensors differentiate between oil and water
Differential between on and off comes in 2.5″or 6″ models
Available with or without a piggyback plug
Helps satisfy elevator code ASME A17.1 and EPA, The Spill Prevention, Control, and Countermeasure Plan
No Moving Parts—BUBBA Proof
No Float Swtiches to get fouled or hung up
Capacitance type sensor
Elevator Sumps
Electric Utilities ( Substations, Power Plants, Underground Vaults, and Transformer Barriers
Any Industrial Sump or Marine Application
Frequently Asked Questions
How does the OilSmart switch detect the difference between oil and water?
It uses a capacitance-type sensor that distinguishes between oil and water without any moving parts.
Can the switch be used without an electrical control panel?
Yes, it is a standalone unit that directly controls pumps up to 1 HP without needing a control panel.
What voltages are available for the OilSmart switch?
It is available in 120 VAC, 230 VAC (50/60 Hz), or 12/24 VDC.
Does the switch help with safe water pumping?
Yes, it ensures the pump only discharges water and automatically shuts off if oil is detected, keeping your operations safe and protecting the environment.
Where can this switch be used?
It’s ideal for elevator sumps, transformer barriers, power plants, utility vaults, and marine applications.
