OilSmart Elevator Pump-Out System #S/OSS/A/SP
Elevator Pump-Out System - Switch, Sump Pump and Alarm
- Pumps water without oil: Controls allow water to be pumped without the risk of pumping hydrocarbons or contaminants
- Differentiates oil and water: Sensors and alarms identify if oil or water is present to protect the environment
- Code and regulatory support: Installation helps comply with Elevator Code ASME A17.1 and State/Federal regulations
- Complete packaged system: Includes pump switch, alarm, and heavy duty submersible sump pump for a turnkey setup
- Plug-and-play or hard-wired: Available from plug and play to single phase simplex panel systems
- Standalone pump control: Operates any pump up to 1 HP with built-in ON/OFF differential options
- Visible/audible alerts: Beacon lights, indicators, and horn-ready dry contacts for remote monitoring
- Wide application range: Fits elevator sumps, containment areas, underground vaults, marine, and industrial sites
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
Need to pump water without pumping oil? Get the right switch, alarm, and sump pump in one package—no waiting, no guesswork. Just ask.
OilSmart Elevator Pump-Out System Features
For elevator sumps, underground utility vaults, tank farms, secondary containment areas, & pits.
01
Design
- Complete system package: Includes pump switch, alarm, and heavy duty submersible sump pump
- Flexible installation: Custom complete systems from plug and play to hard wired Single Phase Simplex Panel systems
- Standalone control: Pump controller operates any pump up to 1 HP with 2.5″ or 6″ differential
02
PERFORMANCE
- Water-only pumping: System prevents the pumping of hydrocarbons and other contaminants
- Oil/water recognition: Sensors differentiate between oil and water to enable responsible discharge
- Wide power options: Available in 120 VAC, 230 VAC 50/60 Hz., or 12/24 VDC
03
CONTROL & ALARMS
- Automatic shutdown on oil: Switch energizes on water and shuts the pump down on oil
- Visual/audible indicators: Plug-and-play alarm with mounted indicators and dry contacts for remote monitoring
- Liquid identification: Alarm activates with any liquid and identifies if oil or water is present
04
APPLICATIONS
- Elevators & utilities: Elevator sumps; transformer containment areas; city underground vaults
- Industrial & marine: Industrial sump or marine application; water oil separator protection
- Broader use cases: Underground vault sump pumps; containment barriers; gray water tanks; pump controllers
WHY OILSMART ELEVATOR PUMP-OUT (EPO) SYSTEM MATTERS
Differentiating oil from water at the switch and alarm level stops contamination at the source—so facilities can pump water, stay compliant, and avoid fines and cleanup costs.
OilSmart Elevator Pump-Out Overview

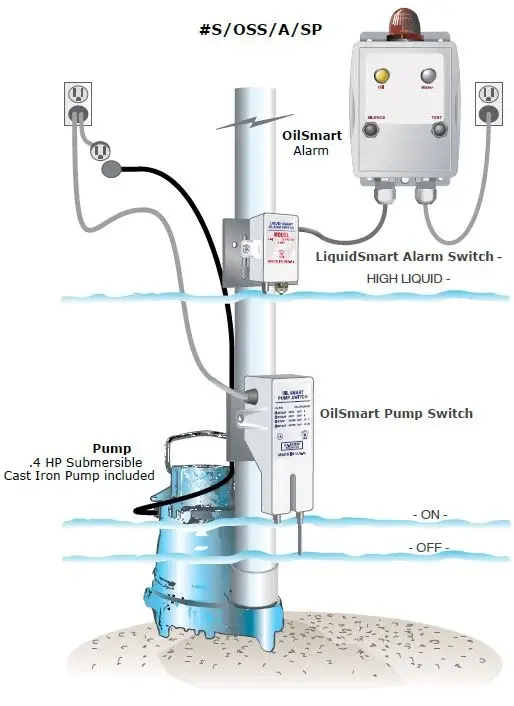

The complete OilSmart Elevator Pump-Out (EPO) System model #S/OSS/A/SP is a complete system that will prevent the pumping of hydrocarbons and other contaminants into the environment. The complete OilSmart System includes the OilSmart Sump Pump Switch model #S/OSS20PBPR6/X , the OilSmart Alarm model #S/OSA-05/X and the heavy duty submersible sump pump model # S/N152/X . When installed this system allows you to comply with Elevator Code ASME A17.1 and State/Federal regulations while reducing the risk of adverse publicity, fines and expensive cleanup costs.
TYPICAL APPLICATIONS: Underground vault sump pumps, Oil farm containment barriers, Out door containment trays, Elevator sump pumps, Mariner Shower Pans / Gray Water Tanks, Agricultural diesel engine containment barriers, Recreational boating bilge switch, Workboat shaft alley pump switch, Large vessel pump controller, Water oil separator protection, ndustrial water oil separating systems, Oil tank water monitors/removal Basement water pump controller.
Click Here for the OilSmart System model #S/OSS/A/SP Brochure
Our OilSmart Systems incorporates pump controls and alarm sensors that differentiate between oil and water, allowing companies to responsibly discharge the water without worrying about contamination.
Custom complete systems available. From plug and play to hard wired Single Phase Simplex Panel systems.

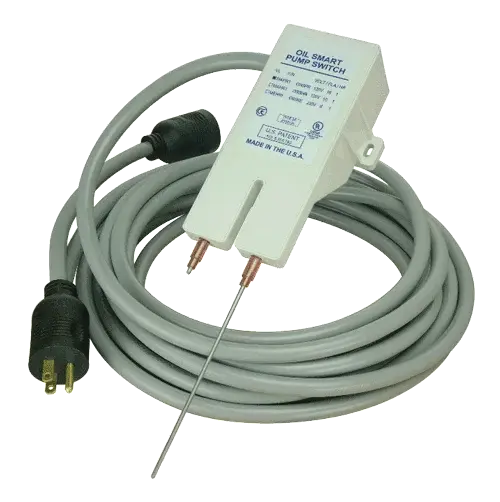

OilSmart Pump Switch
The OilSmart Pump Switch , when combined with a non-auto sump pump, will allow water to be pumped without the risk of pumping oil. The switch is ideal for elevator sumps, transformer containment areas, parking garages, and city underground vaults.
The OilSmart™ water pump switch & sensor lets you safely pump water only! This switch energizes a pump, valve, alarm or whatever’s wired into it when it detects water, not oil. If it detects oil, it shuts the pump DOWN! It’s deadly effective and economical to use!
OilSmart Alarm System
The OilSmart Alarm System is a plug and play alarm that differentiates between oil and water. The system is complete with visible mounted indicators and dry contacts for remote monitoring. The alarm will activate with the presence of any liquid and will identify if oil or water is present. With the unique ability to differentiate between oil and water, the OilSmart Alarm System is designed as a high liquid alarm or leak detector system. The OilSmart Alarm System is triggered by the new all-in-one LiquidSmart Sensor. Alarms are equipped with both visual and audible signals. The new LiquidSmart Alarm Sensor will activate the alarm and indicator lights.

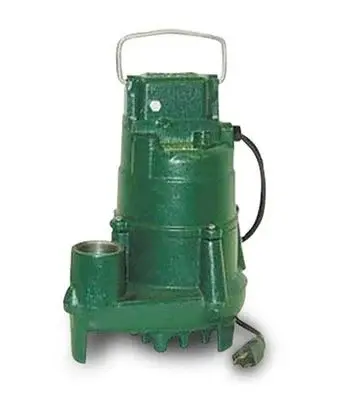

Model S/ N152/X Submersible Sump Pump
Model S/ N152/X Submersible Sump Pump Features Durable Cast Iron Construction, Corrosion-Resistant, Powder Coated Epoxy Finish, Stainless Steel Lifting Handle, Motor – 3450 RPM, Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected, 1½” NPT Vertical Discharge, Operates at Temperatures to 130°F (54°C) in Effluent Applications. Includes a 1½” x 2″ PVC Adapter Fitting
Frequently Asked Questions
What does the pump switch do in this system?
The pump switch allows water to be pumped without the risk of pumping oil and shuts the pump down when oil is detected.
How does the alarm help prevent contamination?
The plug-and-play alarm differentiates between oil and water with visible indicators and dry contacts for remote monitoring.
Can this system help with operational safety and protection?
Yes, installation ensures safe and reliable water pumping while preventing hydrocarbons or contaminants from being discharged, protecting equipment, facilities, and the surrounding environment.
Is the controller limited to certain pumps?
The standalone pump controller will operate any pump up to 1 HP and includes built-in ON and OFF differential options.
What kinds of sites can use this system?
Typical applications include elevator sumps, transformer containment areas, parking garages, underground vaults, marine, and other industrial locations.
