- USCG & IMO Certified: Meets IMO MEPC 107(49) and U.S. Coast Guard standards for marine oil-water separation.
- Automatic operation: Self-monitoring and self-priming design adjusts to changing conditions without operator intervention.
- Works in motion: Operates effectively at up to 30° tilt, handling vibration and ship movement without performance loss.
- Low maintenance: Rugged construction with minimal moving parts reduces servicing needs and downtime.
- Flexible installation: Compact, low-profile footprint fits in tight marine or industrial spaces.
- Wide application range: Effective in marine, offshore, and industrial settings for separating oil and water.
- Customizable options: Available in multiple capacities and configurations to meet specific project needs.
- In-stock models: Standard units available for fast delivery to minimize downtime.
IN STOCK. READY TO SHIP. PROBLEM SOLVED.
When you need reliable oily water separation now, waiting weeks isn’t an option. We keep units ready so you can get back to work fast.
Oil Water Separator Features
01
Design
- Compact footprint: Designed to fit in tight spaces on ships, platforms, and industrial sites.
- Rugged construction: Built from carbon steel to ASME specs with industrial epoxy coating.
- Custom configurations: Available with various options including hazardous area setups and high-lift capabilities.
02
PERFORMANCE
Motion-resistant operation: Functions at up to 30° tilt with no performance loss.
Handles emulsified oil: Equipped with post-filtration for removing oil emulsions when required.
03
INSTALLATION & mAINTENANCE
- Ready to operate: Ships as a complete system with motor, pumps, piping, and controls.
- Minimal maintenance: Few moving parts and long-life components keep servicing simple.
- Self-priming system: No need for precise leveling or stationary mounting.
WHY BRUTE MARINE OILY WATER SEPARATORS MATTER
Marine operations can’t afford downtime or compliance issues. These separators deliver certified performance, automatic operation, and rugged durability to keep your vessel or facility within regulations — no matter the conditions.

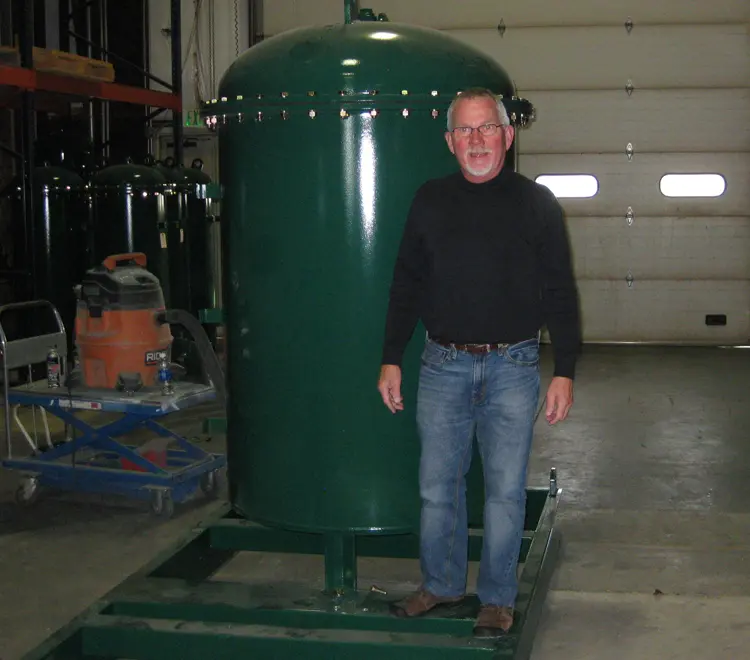

BRUTE Marine Oil Water Separators
BRUTE Marine Oil Water Separators are tough, well built, easy-to-operate systems. With simple operation, these rugged marine oily water separators are shipped complete as systems with motor, pumps, piping, monitor and controls and are ready to be easily installed and operated —without delay. Simple efficient design and high quality components = Simple operation and reliability Explosion Proof and Oil Rig Separators available.
These marine oily water separator units are designed to operate automatically and monitor and adjust to your conditions. Self priming systems mean hassle free simple operation. These BRUTE separators will work at a 30° pitch — even while ship is in motion! No need for these bilge oily water separator units to be installed on flat, level, or even surface.
U.S. Coast Guard Certified
Workboats · Ships · Shoreside · Offshore Oil Platforms · Port Facilities · Dredges
In stock for FAST delivery!
Call (314)579-9755
Easy to use and maintain – Compact & low profile EZ install – Ready to operate
2.2, 5, 11, 25 & 45 gpm models available.
Ready to meet the USCG?
Why BRUTE marine oil water separators? They are asy to use and maintain — compact & low profile — easy retrofit- No consumables- Simple Bubba-proof Automated controls- Quality built in USA!
With US Coast Guard and IMO MEPC 107(49) certification our standard BRUTE separators are installed all over the world in many applications. They are known for their Heavy Duty construction, Simple and Efficient Operation and Affordability. Each unit comes built to operate for long periods of time in a harsh Industrial/Marine Environment with very little maintenance, attention or trouble. This unit can be provided to match any electrical power needs. Normally provided standard with a 3 phase power requirement.
Brute IMO MEPC 107(49) Certifications
| Model (w/o Monitor) | Dimensions (inches) | Dry Weight (Lbs) | Dry Weight (Kgs) | Wet Weight (Lbs) | Wet Weight (Kgs) |
|---|---|---|---|---|---|
| BBOWS 2.2 | 27×31×50 | 300 | 136 | 396 | 180 |
| BBOWS 5 | 28×38×56 | 500 | 227 | 740 | 336 |
| BBOWS 11 | 36×43×69 | 900 | 408 | 1428 | 648 |
| BBOWS 25 | 41×47×72 | 1200 | 544 | 2600 | 1179 |
| BBOWS 45 | 54×62×75 | 1750 | 794 | 4270 | 1937 |
Dimensions are width x length x height in inches. Weight is in lbs(Kg).
Notes: Various options will change the numbers. As an example, adding an MOV will add 2″ to the height. Other options that will change dimensions are High Lift, Hazardous Area, and Skid.
CAUTION: DIMENSIONS CHANGE FREQUENTLY. CONFIRM DIMENSIONS WITH SKIMOIL BEFORE ORDERING!
NOTE: Add “107” to above oil water separator model numbers for unit to meet IMO 107(49).
BRUTE Bilge Oily Water Separators (BBOWS) Removal Systems are industrial marine grade oil water separators that have a variety of applications. Fully US Coast Guard certified with vessels and piping and the standard oil water separator unit being constructed from carbon steel to ASME specifications and are coated with an industrial strength epoxy coating.
IMO MEPC 107(49) certified OWS require a filter, the design remains simple and media replacement is made easy. BRUTE bilge separators use an organoclay filter media which will hold up to an amazing 50% of its weight in oils! Rugged construction of the oil water separator and its lack of moving parts make maintenance minimal. Brute Marine Oily Watet Separators are quality built in the USA and shipped as complete systems— Self monitoring with OCM· Simple maintenance free design EZ install – Ready to operate · Heavy duty epoxy/Poly-u coating · High quality components · Conductivity sensor – No filters · Stainless steel centrifugal pump · Bronze & red brass piping & valves.
2.2 gpm, 5 gpm, 10 gpm, 25 gpm, & 45 gpm. Available with or without oil content monitor. Custom sizes available – to hundreds of GPM.
2.2 In stock for FAST delivery! Call (314) 579-9755

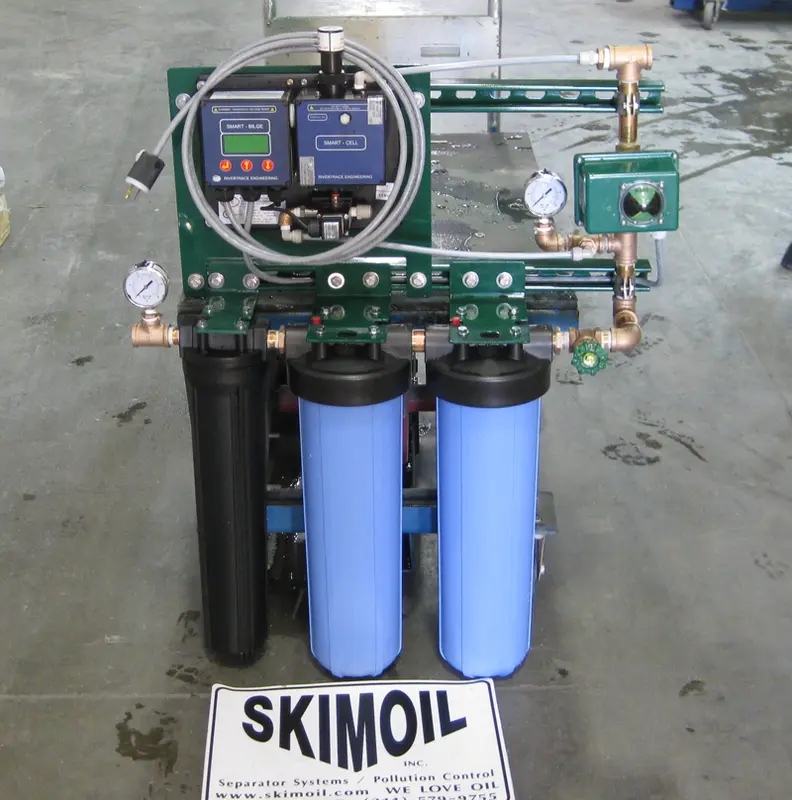

Not required to have a full blown Oily Water Separator?
Check out the BilgeFilter . An easy $$ cheap solution!
- Automatic Operation with auto backflush and recycle
- NEMA 7 Class I Division II Explosion Proof Controls & Electrical
- Explosion Proof Oil in Water Monitoring to 15 PPM (5 PPM with Polishing)
- IMO Approval and US Coast Guard Certification
- Skid Mounted Epoxy Coated Steel Vessels
- Marine Bronze or SS Piping and Valves
- Post Separation Multimedia Filtering for Particle/Contaminant Removal
- Turbidity and pH Monitoring and UV Disinfection
- Flow meters/Transmitters for Water Inlet and Discharge and Oil Discharge
Frequently Asked Questions
What is the BRUTE oil water separator?
Designed to fit a small space on ships, the BRUTE is a simple, very effective solution for bilge applications. In addition, we have found the oil separating capability of the unit suited to many other applications, both marine and oil & gas and industrial.
In what applications can the BRUTE separator be used?
While the primary use for the BRUTE system is still bilge oily water separation, the BRUTE unit can be used in any application where oil and water need separating. The simplicity of the system and its flexibility have made it popular in applications from compressor oil to car/truck wash to large platforms and FPSOs and everything in between.
Do I have to provide exact specs or can you help me with specifications that will meet my needs?
You may provide us with exact specifications for your proposed separator and we will be happy to provide a bid. Or if you call our expert staff we can help you design the specifications that will work for your application.
What if I need a different size than the 5 sizes you offer?
The standard separator ranges from 2-45 gpm. These are the units we stock and sell the most. We can however, easily design a different size and propose a solution to much larger applications.
How does this separator handle emulsified oil?
Emulsified oil can be separated in the BRUTE system by applying various pre and post separation treatments and filtering. The standard IMO MEPC 107(49) certified unit comes standard with a post filter that will remove emulsions. Many other applications also include the need for filters.
Just how much motion can these units handle and still operate effectively?
The BRUTE oily water separators were designed to handle motion and vibration on ships and will continue to operate even at a 30 degree tilt. These are rugged, well built units that can stand up to all kinds of harsh environments.
